App Widgets

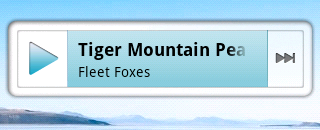

App Widgets are miniature application views that can be embedded in other applications (such as the Home screen) and receive periodic updates. These views are referred to as Widgets in the user interface, and you can publish one with an App Widget provider. An application component that is able to hold other App Widgets is called an App Widget host. The screenshot below shows the Music App Widget.

This document describes how to publish an App Widget using an App Widget provider.

The Basics

To create an App Widget, you need the following:

AppWidgetProviderInfo object

Describes the metadata for an App Widget, such as the App Widget's layout, update frequency, and the AppWidgetProvider class. This should be defined in XML.

AppWidgetProvider class implementation

Defines the basic methods that allow you to programmatically interface with the App Widget, based on broadcast events. Through it, you will receive broadcasts when the App Widget is updated, enabled, disabled and deleted.

View layout

Defines the initial layout for the App Widget, defined in XML.

Additionally, you can implement an App Widget configuration Activity. This is an optional Activity that launches when the user adds your App Widget and allows him or her to modify App Widget settings at create-time.

The following sections describe how to setup each of these components.

Declaring an App Widget in the Manifest

First, declare the AppWidgetProvider class in your application's AndroidManifest.xml file. For example:

<receiver android:name="ExampleAppWidgetProvider" >
    <intent-filter>
        <action android:name="android.appwidget.action.APPWIDGET_UPDATE" />
    </intent-filter>
    <meta-data android:name="android.appwidget.provider"
               android:resource="@xml/example_appwidget_info" />
</receiver>

The <receiver> element requires the android:name attribute, which specifies the AppWidgetProvider used by the App Widget.

The <intent-filter> element must include an <action> element with the android:name attribute. This attribute specifies that the AppWidgetProvider accepts the ACTION_APPWIDGET_UPDATE broadcast. This is the only broadcast that you must explicitly declare. The AppWidgetManager automatically sends all other App Widget broadcasts to the AppWidgetProvider as necessary.

The <meta-data> element specifies the AppWidgetProviderInfo resource and requires the following attributes:

• android:name - Specifies the metadata name. Use android.appwidget.provider to identify the data as the AppWidgetProviderInfo descriptor.
• android:resource - Specifies the AppWidgetProviderInfo resource location.

Adding the AppWidgetProviderInfo Metadata

The AppWidgetProviderInfo defines the essential qualities of an App Widget, such as its minimum layout dimensions, its initial layout resource, how often to update the App Widget, and (optionally) a configuration Activity to launch at create-time. Define the AppWidgetProviderInfo object in an XML resource using a single <appwidget-provider> element and save it in the project's res/xml/ folder.

For example:

<appwidget-provider xmlns:android="http://schemas.android.com/apk/res/android"
    android:minWidth="294dp" <!-- density-independent pixels -->
    android:minHeight="72dp"
    android:updatePeriodMillis="86400000" <!-- once per day -->
    android:initialLayout="@layout/example_appwidget"
    android:configure="com.example.android.ExampleAppWidgetConfigure" >
</appwidget-provider>

Here's a summary of the <appwidget-provider> attributes:

• The values for the minWidth and minHeight attributes specify the minimum area required by the App Widget's layout.

  The default Home screen positions App Widgets in its window based on a grid of cells that have a defined height and width. If the values for an App Widget's minimum width or height don't match the dimensions of the cells, then the App Widget dimensions round up to the nearest cell size. (See the App Widget Design Guidelines for more information on the Home screen cell sizes.)

  Because the Home screen's layout orientation (and thus, the cell sizes) can change, as a rule of thumb, you should assume the worst-case cell size of 74 pixels for the height and width of a cell. However, you must subtract 2 from the final dimension to account for any integer rounding errors that occur in the pixel count. To find your minimum width and height in density-independent pixels (dp), use this formula:
  (number of cells * 74) - 2
  Following this formula, you should use 72 dp for a height of one cell, 294 dp and for a width of four cells.

• The updatePerdiodMillis attribute defines how often the App Widget framework should request an update from the AppWidgetProvider by calling the onUpdate() method. The actual update is not guaranteed to occur exactly on time with this value and we suggest updating as infrequently as possible—perhaps no more than once an hour to conserve the battery. You might also allow the user to adjust the frequency in a configuration—some people might want a stock ticker to update every 15 minutes, or maybe only four times a day.
• The initialLayout attribute points to the layout resource that defines the App Widget layout.
• The configure attribute defines the Activity to launch when the user adds the App Widget, in order for him or her to configure App Widget properties. This is optional (read Creating an App Widget Configuration Activity below).

See the AppWidgetProviderInfo class for more information on the attributes accepted by the <appwidget-provider> element.

Creating the App Widget Layout

You must define an initial layout for your App Widget in XML and save it in the project's res/layout/ directory. You can design your App Widget using the View objects listed below, but before you begin designing your App Widget, please read and understand the App Widget Design Guidelines.

Creating the App Widget layout is simple if you're familiar with Declaring Layout in XML. However, you must be aware that App Widget layouts are based on RemoteViews, which do not support every kind of layout or view widget.

A RemoteViews object (and, consequently, an App Widget) can support the following layout classes:

• FrameLayout
• LinearLayout
• RelativeLayout

And the following widget classes:

• AnalogClock
• Button
• Chronometer
• ImageButton
• ImageView
• ProgressBar
• TextView

Descendants of these classes are not supported.

Using the AppWidgetProvider Class

The AppWidgetProvider class extends BroadcastReceiver as a convenience class to handle the App Widget broadcasts. The AppWidgetProvider receives only the event broadcasts that are relevant to the App Widget, such as when the App Widget is updated, deleted, enabled, and disabled. When these broadcast events occur, the AppWidgetProvider receives the following method calls:

onUpdate(Context, AppWidgetManager, int[])

This is called to update the App Widget at intervals defined by the updatePeriodMillis attribute in the AppWidgetProviderInfo (see Adding the AppWidgetProviderInfo Metadata above). This method is also called when the user adds the App Widget, so it should perform the essential setup, such as define event handlers for Views and start a temporary Service, if necessary. However, if you have declared a configuration Activity, this method is not called when the user adds the App Widget, but is called for the subsequent updates. It is the responsibility of the configuration Activity to perform the first update when configuration is done. (See Creating an App Widget Configuration Activity below.)

onDeleted(Context, int[])

This is called every time an App Widget is deleted from the App Widget host.

onEnabled(Context)

This is called when an instance the App Widget is created for the first time. For example, if the user adds two instances of your App Widget, this is only called the first time. If you need to open a new database or perform other setup that only needs to occur once for all App Widget instances, then this is a good place to do it.

onDisabled(Context)

This is called when the last instance of your App Widget is deleted from the App Widget host. This is where you should clean up any work done in onEnabled(Context), such as delete a temporary database.

onReceive(Context, Intent)

This is called for every broadcast and before each of the above callback methods. You normally don't need to implement this method because the default AppWidgetProvider implementation filters all App Widget broadcasts and calls the above methods as appropriate.

Note: In Android 1.5, there is a known issue in which the onDeleted() method will not be called when it should be. To work around this issue, you can implement onReceive() as described in this Group post to receive the onDeleted() callback.

The most important AppWidgetProvider callback is onUpdated() because it is called when each App Widget is added to a host (unless you use a configuration Activity). If your App Widget accepts any user interaction events, then you need to register the event handlers in this callback. If your App Widget doesn't create temporary files or databases, or perform other work that requires clean-up, then onUpdated() may be the only callback method you need to define. For example, if you want an App Widget with a button that launches an Activity when clicked, you could use the following implementation of AppWidgetProvider:

public class ExampleAppWidgetProvider extends AppWidgetProvider {

    public void onUpdate(Context context, AppWidgetManager appWidgetManager, int[] appWidgetIds) {
        final int N = appWidgetIds.length;

        // Perform this loop procedure for each App Widget that belongs to this provider
        for (int i=0; i<N; i++) {
            int appWidgetId = appWidgetIds[i];

            // Create an Intent to launch ExampleActivity
            Intent intent = new Intent(context, ExampleActivity.class);
            PendingIntent pendingIntent = PendingIntent.getActivity(context, 0, intent, 0);

            // Get the layout for the App Widget and attach an on-click listener to the button
            RemoteViews views = new RemoteViews(context.getPackageName(), R.layout.appwidget_provider_layout);
            views.setOnClickPendingIntent(R.id.button, pendingIntent);

            // Tell the AppWidgetManager to perform an update on the current App Widget
            appWidgetManager.updateAppWidget(appWidgetId, views);
        }
    }
}

This AppWidgetProvider defines only the onUpdated() method for the purpose of defining a PendingIntent that launches an Activity and attaching it to the App Widget's button with setOnClickPendingIntent(int, PendingIntent). Notice that it includes a loop that iterates through each entry in appWidgetIds, which is an array of IDs that identify each App Widget created by this provider. In this way, if the user creates more than one instance of the App Widget, then they are all updated simultaneously. However, only one updatePeriodMillis schedule will be managed for all instances of the App Widget. For example, if the update schedule is defined to be every two hours, and a second instance of the App Widget is added one hour after the first one, then they will both be updated on the period defined by the first one and the second update period will be ignored (they'll both be updated every two hours, not every hour).

Note: Because the AppWidgetProvider is a BroadcastReceiver, your process is not guaranteed to keep running after the callback methods return (see Application Fundamentals > Broadcast Receiver Lifecycle for more information). If your App Widget setup process can take several seconds (perhaps while performing web requests) and you require that your process continues, consider starting a Service in the onUpdated() method. From within the Service, you can perform your own updates to the App Widget without worrying about the AppWidgetProvider closing down due to an Application Not Responding (ANR) error. See the Wiktionary sample's AppWidgetProvider for an example of an App Widget running a Service.

Also see the ExampleAppWidgetProvider.java sample class.

Receiving App Widget broadcast Intents

AppWidgetProvider is just a convenience class. If you would like to receive the App Widget broadcasts directly, you can implement your own BroadcastReceiver or override the onReceive(Context, Intent) callback. The four Intents you need to care about are:

• ACTION_APPWIDGET_UPDATE
• ACTION_APPWIDGET_DELETED
• ACTION_APPWIDGET_ENABLED
• ACTION_APPWIDGET_DISABLED

Creating an App Widget Configuration Activity

If you would like the user to configure settings when he or she adds a new App Widget, you can create an App Widget configuration Activity. This Activity will be automatically launched by the App Widget host and allows the user to configure available settings for the App Widget at create-time, such as the App Widget color, size, update period or other functionality settings.

The configuration Activity should be declared as a normal Activity in the Android manifest file. However, it will be launched by the App Widget host with the ACTION_APPWIDGET_CONFIGURE action, so the Activity needs to accept this Intent. For example:

<activity android:name=".ExampleAppWidgetConfigure">
    <intent-filter>
        <action android:name="android.appwidget.action.APPWIDGET_CONFIGURE" />
    </intent-filter>
</activity>

Also, the Activity must be declared in the AppWidgetProviderInfo XML file, with the android:configure attribute (see Adding the AppWidgetProvierInfo Metadata above). For example, the configuration Activity can be declared like this:

<appwidget-provider xmlns:android="http://schemas.android.com/apk/res/android"
    ...
    android:configure="com.example.android.ExampleAppWidgetConfigure"
    ... >
</appwidget-provider>

Notice that the Activity is declared with a fully-qualified namespace, because it will be referenced from outside your package scope.

That's all you need to get started with a configuration Activity. Now all you need is the actual Activity. There are, however, two important things to remember when you implement the Activity:

• The App Widget host calls the configuration Activity and the configuration Activity should always return a result. The result should include the App Widget ID passed by the Intent that launched the Activity (saved in the Intent extras as EXTRA_APPWIDGET_ID).
• The onUpdate() method will not be called when the App Widget is created (the system will not send the ACTION_APPWIDGET_UPDATE broadcast when a configuration Activity is launched). It is the responsibility of the configuration Activity to request an update from the AppWidgetManager when the App Widget is first created. However, onUpdate() will be called for subsequent updates—it is only skipped the first time.

See the code snippets in the following section for an example of how to return a result from the configuration and update the App Widget.

Updating the App Widget from the configuration Activity

When an App Widget uses a configuration Activity, it is the responsibility of the Activity to update the App Widget when configuration is complete. You can do so by requesting an update directly from the AppWidgetManager.

Here's a summary of the procedure to properly update the App Widget and close the configuration Activity:

1. First, get the App Widget ID from the Intent that launched the Activity:

   Intent intent = getIntent();
   Bundle extras = intent.getExtras();
   if (extras != null) {
       mAppWidgetId = extras.getInt(
               AppWidgetManager.EXTRA_APPWIDGET_ID,
               AppWidgetManager.INVALID_APPWIDGET_ID);
   }


2. Perform your App Widget configuration.
3. When the configuration is complete, get an instance of the AppWidgetManager by calling getInstance(Context):

   AppWidgetManager appWidgetManager = AppWidgetManager.getInstance(context);


4. Update the App Widget with a RemoteViews layout by calling updateAppWidget(int, RemoteViews):

   RemoteViews views = new RemoteViews(context.getPackageName(), R.layout.example_appwidget);
   appWidgetManager.updateAppWidget(mAppWidgetId, views);


5. Finally, create the return Intent, set it with the Activity result, and finish the Activity:

Intent resultValue = new Intent();
resultValue.putExtra(AppWidgetManager.EXTRA_APPWIDGET_ID, mAppWidgetId);
setResult(RESULT_OK, resultValue);
finish();

Tip: When your configuration Activity first opens, set the Activity result to RESULT_CANCELED. This way, if the user backs-out of the Activity before reaching the end, the App Widget host is notified that the configuration was cancelled and the App Widget will not be added.

See the ExampleAppWidgetConfigure.java sample class in ApiDemos for an example.
